Red Copper Wire Mesh

Brand: ZRD
Model: ZRD-RM03
Country of Origin: China
Minimum Order: 1 roll
Payment Term: TT, L/C At Sight, Western Union
Delivery Times: 1-25 Days
Packing: One Roll For One Carton, Wooden Case or Customized

Categories :
Contact Now
  • Description

Customize Attributes

Material: Pure copper wire 99.9%
Mesh Size: 5mesh-300mesh
Wire Diameter: 0.03mm-1.0mm
Width: 0.5m-2.0m or Customized
Length: 10m,15m,30m or Customized
Weaving Method: Plain Weave, Twill Weave
Sample: 20cm x 20cm for free

Features

Red copper wire mesh has the advantages of non-magnetic, good sound insulation, anti-static, corrosion resistance, wear resistance, softness, elasticity, easy bending, easy welding, good electrical and thermal conductivity, filtering electron beams, etc.

Application

Red copperwiremesh used in cable circuit, laboratory, computer room, special facilities to prevent radiation. Anti-electromagnetic interference of electronic equipment, power sector, aerospace, information industry, military facilities, etc.

Red Copper Wire Mesh Specifications

Mesh/inch Wire Diameter Opening (mm)
SWG mm inch
5 20 0.91 0.036 4.17
6 21 0.80 0.031 3.433
6 22 0.711 0.028 3.522
8 22 0.711 0.028 2.46
8 23 0.610 0.025 2.565
8 24 0.511 0.022 2.616
8 26 0.457 0.018 2.7
10 23 0.610 0.025 1.91
10 24 0.511 0.022 1.98
10 25 0.508 0.020 2.032
10 27 0.417 0.016 2.1
12 24 0.511 0.022 1.52
12 26 0.457 0.018 1.66
14 25 0.508 0.020 1.30
14 26 0.457 0.018 1.357
14 27 0.417 0.016 1.397
16 29 0.345 0.013 1.243
16 30 0.315 0.012 1.27
18 26 0.457 0.018 0.98
18 30 0.315 0.012 1.096
18 31 0.295 0.010 1.16
20 27 0.417 0.016 0.86
20 30 0.315 0.012 0.955
20 31 0.295 0.010 1.02
20 32 0.274 0.009 0.88
22 30 0.315 0.012 0.840
22 32 0.274 0.009 0.88
24 28 0.35 0.014 0.71
24 30 0.315 0.012 0.743
24 33 0.254 0.008 0.8
26 31 0.295 0.010 0.682
28 31 0.295 0.010 0.612
30 29 0.345 0.013 0.52
30 32 0.274 0.009 0.573
30 33 0.254 0.008 0.64
30 34 0.234 0.007 0.613
32 33 0.254 0.008 0.540
34 34 0.234 0.007 0.513
36 34 0.234 0.007 0.472
38 35 0.213 0.005 0.455
40 31 0.295 0.010 0.38
40 36 0.193 0.008 0.442
40 38 0.152 0.0060 0.485
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 32 0.229 0.009 0.28
50 34 0.234 0.007 0.32
50 37 0.173 0.0068 0.335
50 39 0.132 0.0052 0.378
60 x 50 36 0.193 0.0076 –
60 x 50 37 0.173 0.0068 –
60 33 0.191 0.0075 0.23
60 37 0.173 0.0068 0.250
60 40 0.122 0.0048 0.301
60 42 0.10 0.0040 0.32
70 39 0.132 0.0052 0.231
70 41 0.112 0.0044 0.251
80 35 0.213 0.005 0.18
80 36 0.193 0.008 0.22
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.216
90 41 0.112 0.0044 0.170
90 43 0.091 0.0036 0.191
100 36 0.193 0.008 0.15
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.164
100 46 0.061 0.0024 0.198
120 x 108 43 0.091 0.0036 –
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 45 0.071 0.0028 0.11
140 46 0.061 0.0024 0.120
145 46 0.061 0.0024 0.1168
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 46 0.061 0.0024 0.081
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076
220 48 0.0406 0.0016 0.065
250 48 0.0406 0.0016 0.061
270 48 0.0406 0.0016 0.0533
300 49.5 0.0381 0.0015 0.0457

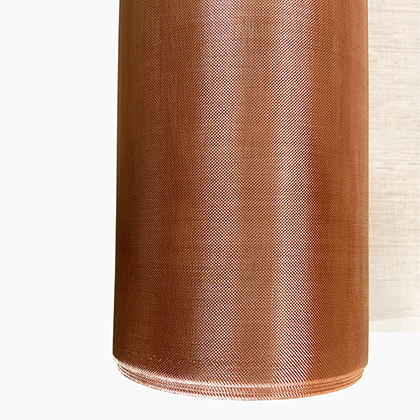

Product Pictures

Red Copper Wire MeshRed Copper Wire Mesh
