Customize Attributes
Material: Stainless Steel Wire 304,304A,316,316L
Mesh: 1-635 mesh
Wire Diameter: 0.02mm-2.0mm
Hole Size: 0.02mm-25.4mm
Color: Silver,Steel
Weaving Style: Plain Weave,Twill Weave,Dutch Weave
Type: Wire Cloth
Technique: Woven
Width: 3ft,4ft,5ft,6ft,2m,6m,8m or Customized
Length: 10m,15m,30m or Customized
Usage: Oil, Space flight, Filter, Printing, Chemical industry
Sample: 20cm x 20cm for free
Features
Stainless steel wire cloth have excellent acid, alkali, corrosion, high temperature and wear resistance,High tensile strength, surface is clean and beautiful,it is convince to use in different field.
Application
Stainless steel wire cloth widely used in mining, aerospace, chemical, food, petroleum, pharmaceutical ,used for screening and filtering under acid and alkaline environmental conditions, used as a mud mesh in the petroleum industry, as a screen filter in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry ,also can used in different others industry and so on.
Stainless Steel Wire Mesh Specifications
| Mesh | Wire Diameter | Aperture/Opening | Open Area | ||
| inch | mm | inch | mm | % | |
| 1 x 1 | .080 | 2.03 | .920 | 23.37 | 84.6 |
| 2 x 2 | .063 | 1.60 | .437 | 11.10 | 76.4 |
| 3 x 3 | .054 | 1.37 | .279 | 7.09 | 70.1 |
| 4 x 4 | .063 | 1.60 | .187 | 4.75 | 56.0 |
| 4 x 4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
| 5 x 5 | .041 | 1.04 | .159 | 4.04 | 63.2 |
| 6 x 6 | .035 | .89 | .132 | 3.35 | 62.7 |
| 8 x 8 | .028 | .71 | .097 | 2.46 | 60.2 |
| 10 x 10 | .025 | .64 | .075 | 1.91 | 56.3 |
| 10 x 10 | .020 | .51 | .080 | 2.03 | 64.0 |
| 12 x 12 | .023 | .584 | .060 | 1.52 | 51.8 |
| 12 x 12 | .020 | .508 | .063 | 1.60 | 57.2 |
| 14 x 14 | .023 | .584 | .048 | 1.22 | 45.2 |
| 14 x 14 | .020 | .508 | .051 | 1.30 | 51.0 |
| 16 x 16 | .018 | .457 | .0445 | 1.13 | 50.7 |
| 18 x 18 | .017 | .432 | .0386 | .98 | 48.3 |
| 20 x 20 | .020 | .508 | .0300 | .76 | 36.0 |
| 20 x 20 | .016 | .406 | .0340 | .86 | 46.2 |
| 24 x 24 | .014 | .356 | .0277 | .70 | 44.2 |
| 30 x 30 | .013 | .330 | .0203 | .52 | 37.1 |
| 30 x 30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30 x 30 | .009 | .229 | .0243 | .62 | 53.1 |
| 35 x 35 | .011 | .279 | .0176 | .45 | 37.9 |
| 40 x 40 | .010 | .254 | .0150 | .38 | 36.0 |
| 50 x 50 | .009 | .229 | .0110 | .28 | 30.3 |
| 50 x 50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60 x 60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60 x 60 | .007 | .178 | .0097 | .25 | 33.9 |
| 70 x 70 | .0065 | .165 | .0078 | .20 | 29.8 |
| 80 x 80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80 x 80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90 x 90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100 x 100 | .0045 | .114 | .0055 | .14 | 30.3 |
| 100 x 100 | .004 | .102 | .0060 | .15 | 36.0 |
| 100 x 100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 110 x 110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
| 120 x 120 | .0037 | .0940 | .0064 | .1168 | 30.7 |
| 150 x 150 | .0026 | .0660 | .0041 | .1041 | 37.4 |
| 160 x 160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180 x 180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200 x 200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 250 x 250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
| 270 x 270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
| 300 x 300 | .0051 | .0381 | .0018 | .0457 | 29.7 |
| 325 x 325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
| 400 x 400 | .0010 | .0254 | .0015 | .370 | 36.0 |
| 500 x 500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
| 635 x 635 | .0008 | .0203 | .0008 | .0203 | 25.0 |

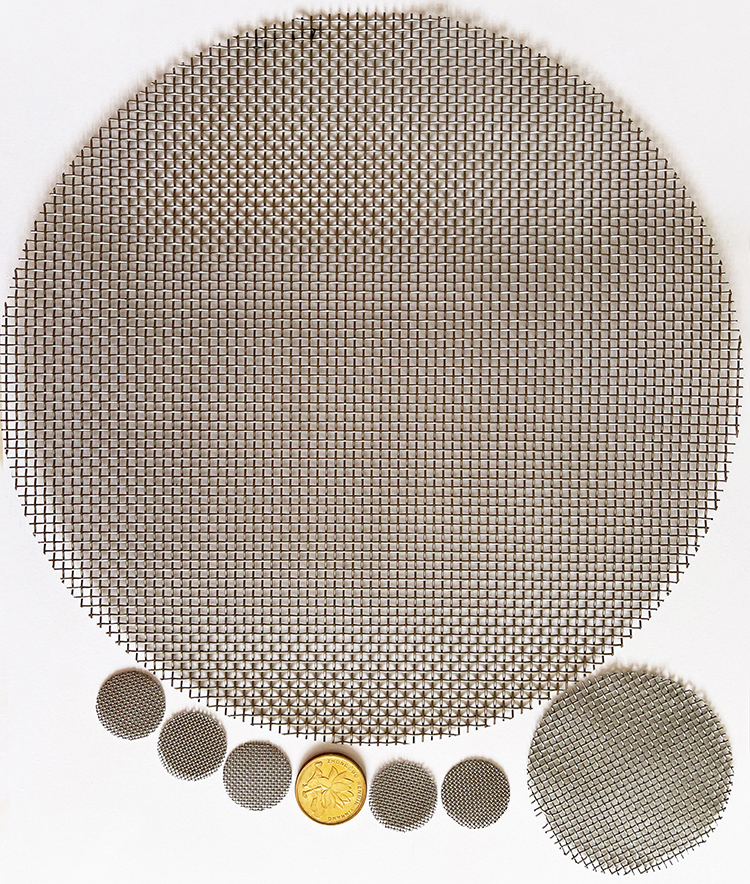

Product Pictures
